Feature:
1. 160 x 120: The thermal scanner has ultra high infrared resolution 160 x 120 and can display the thermal image of the target with high resolution.
2. Continuous Measurement: This infrared thermal imager can realize continuous measurement on the scene, and the waveform of high, low and average temperature of the object can be generated.
3. Point, Line, Surface Detection: Temperature monitoring in three of point, line and surface can be realized through this thermal imager. Each dimension can have at most 3 regions, and TC can read the temperature of 6 regions at the same time. The six color palettes allow users to read the temperature differences in the scene using their selected gradient.
4. 2 Functions: The image rotation function allows users to view the temperature from different angles without rotating the phone. Through the image function, the infrared imager can combine the infrared image taken by the mobile camera with the visible image.
5. Wide Application: This infrared thermal imager can be used in such fields as circuit maintenance, pipeline detection, vehicle fault diagnosis and anti peeking, and multi mode professional thermal map analysis can be carried out anytime and anywhere.
Specification:
Item Type: Phone Thermal Imager Camera
Material: Aluminum Alloy
Resolution: 160 x 120
Operating Wavelength: 8 to 14μm
Frame Rate: 25Hz
NETD (Noise Equivalent Temperature Difference): Less than 50mK at 25 ℃
FOV: 35 ° x 27°
Thermal Imaging Lens Length: Approx. 3.2mm / 0.13in
Temperature Measurement Range: - 15 ℃ to 600 ℃
Temperature Measurement Accuracy: ± 2 ℃ or ± 2% of reading
Temperature Measurement: Support high and low temperature automatic tracking, point temperature measurement, area temperature measurement, line temperature measurement, and temperature range viewing

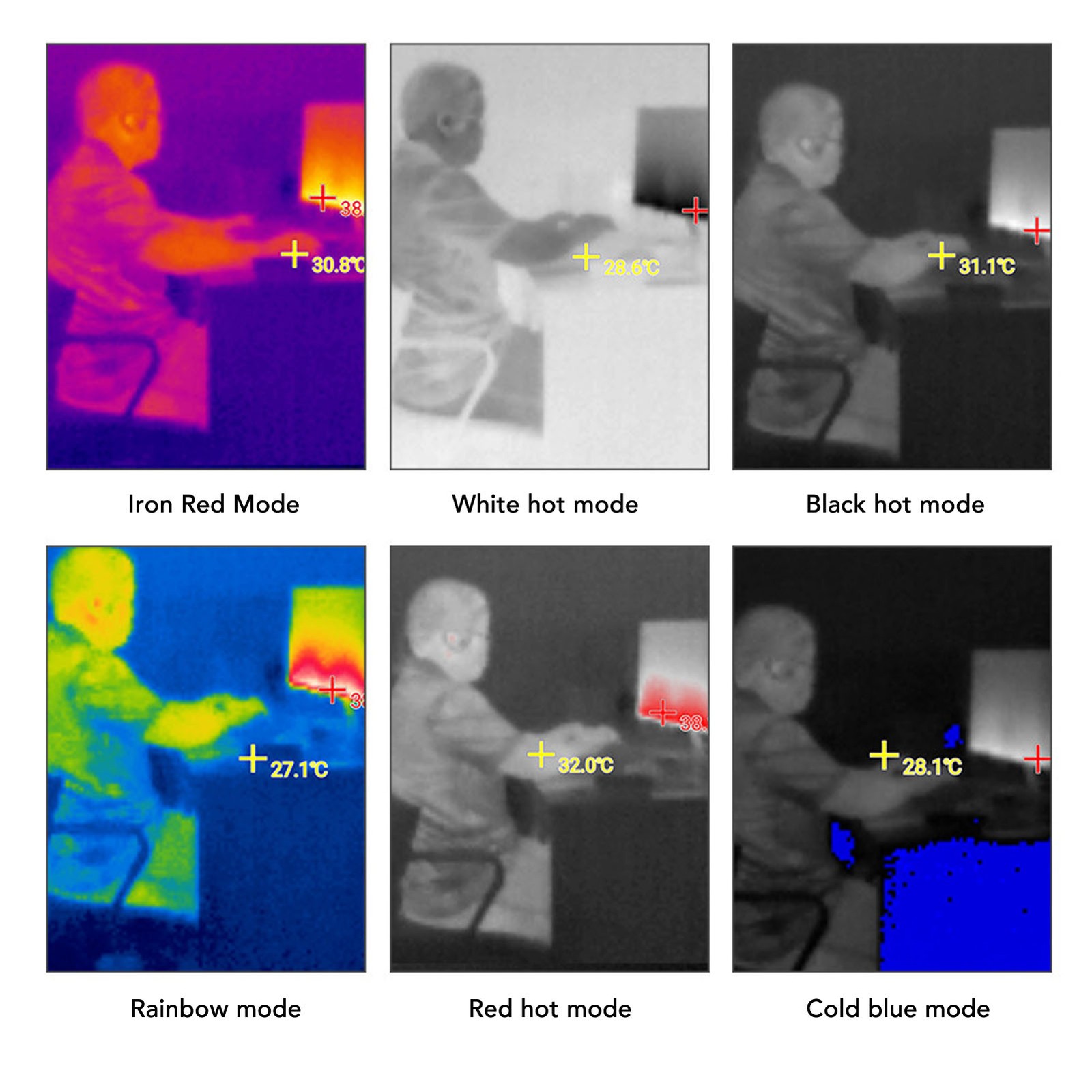

Color Palette: Iron red, , white hot, black hot, cold blue, red hot
Photography and Video Recording: Support photography and video recording, photos and browsing, playback and browsing
Operating Temperature: - 10 ℃ to 75 ℃
Storage Temperature: - 45 ℃ to 85 ℃
Unit Switching: ℃, ℉, K
Package List:
1 x Phone Thermal Imager Camera
1 x Lens Cloth
1 x Bag
1 x Manual
Note:
1. Do not let sunlight, and other strong lights directly hit the lens to avoid permanent physical damage to the lens.
2. Do not immerse the thermal imager in water.
3. Never use alcohol, detergent and other organic cleaners to clean the lens.
